FEATURES
1、High reliability, stability, high sensitivity.
2、Wide range of resistance: 0.5 ~ 1000KΩ.
3、Usable in high-temperature and high-moisture environments due to the glass wrapping.
4、Small, light, firm structure, convenient automatic installation on PCB.
5、Rapid response time.
6、Operating temp. -55℃ ~ +250℃.
APPLICATION
1、Temperature compensation and detection for Office automation facilities (e.g. Copiers, printers etc.).
2、Industrial, medical, environmental protection, weather and food processing equipment.
3、Household appliances (air conditioners,microwave ovens,electric fans,electric heaters).
4、Liquid level display and flow water measurement.
5、Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
6、Electronics Thermometer.
7、Medical instrument.

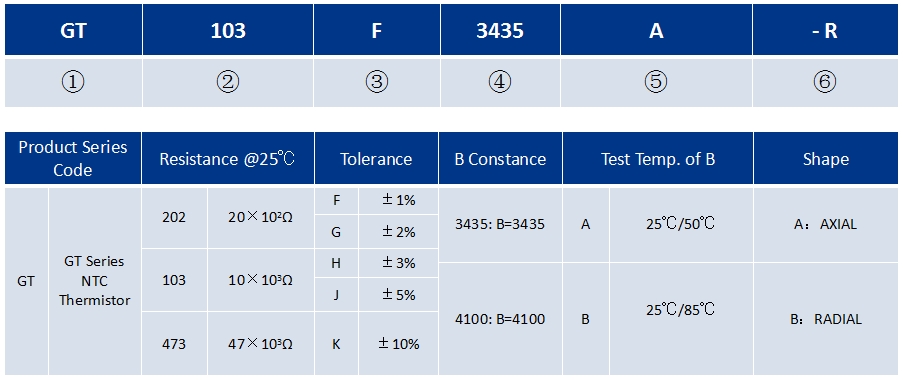

Part Number Identification

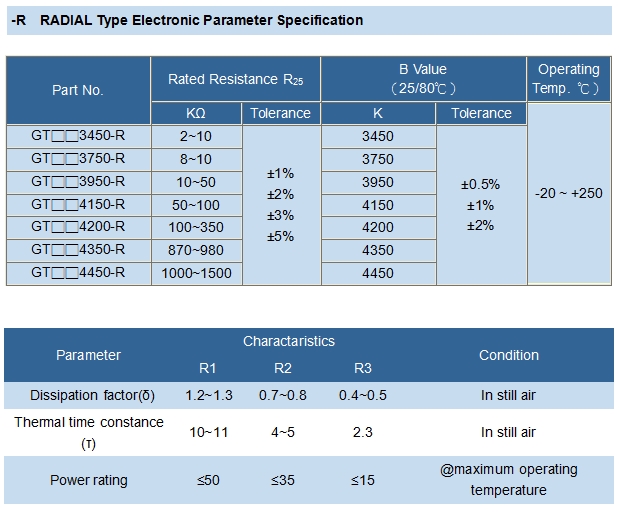

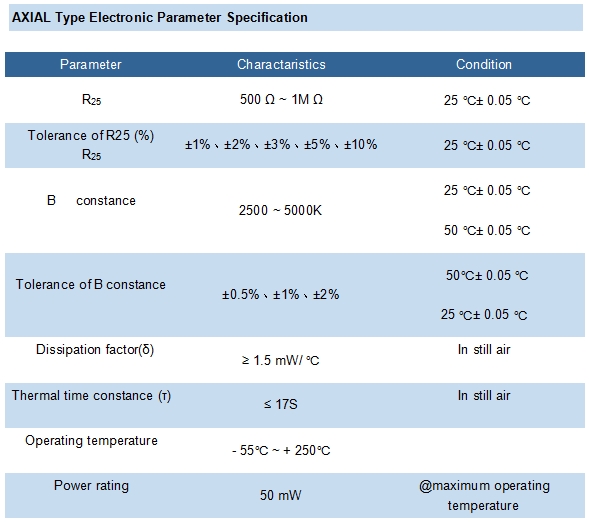

Electronic Parameter Specification
