LT Series— Small Size NTC Thermistor

FEATURES

1、Small size, Fast response, High sensitivity.
2、High accuracy tolerances to +/-0.1℃.
3、Excellent thermal cycle endurance.
4、High stability.
5、Operating ranges -50℃ ~ +125℃.

APPLICATION

1、For high accuracy temperature sensor production.

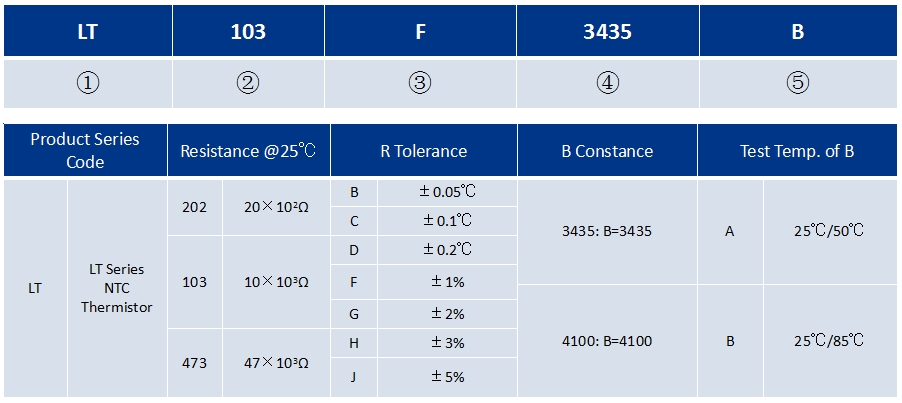

Part Number Identification

Electronic Parameter Specification

Part No.	R₂₅_℃ (KΩ)	B(K)	Rated Power @25℃（mW）	Dissipation Factor(δ) (mW/℃)	Thermal Time Constant (S)
LT502□3274A	5.0	3274	10-15	2	≤10
LT502□3435B	5.0	3435
LT502□3470A	5.0	3470
LT502□3950A	5.0	3950
LT103□3274A	10.0	3274
LT103□3435B	10.0	3435
LT103□3470A	10.0	3470
LT103□3950A	10.0	3950
LT103□4100A	10.0	4100
LT153□3950A	15.0	3950
LT153□4100A	15.0	4100
LT203□3950A	20.0	3950
LT203□4100A	20.0	4100
LT403□3928A	40.27	3928
LT473□3950A	47.0	3950
LT473□4100A	47.0	4100
LT503□3950A	50.0	3950
LT503□4100A	50.0	4100
LT104□3950A	100	3950
LT104□4100A	100	4100
LT104□4400A	100	4400

◆The B-tolerance is ±1% when R--tolerance within ±3%, others are ±2%.

◆Special part number could be custom designed.

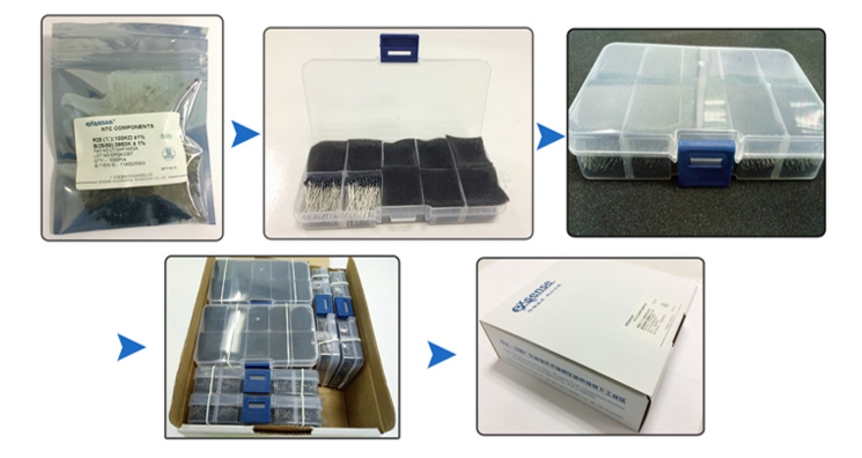

Package
