FEATURES
1、Fast response, High delicacy.
2、Good coherence and Interchange capability, high precision of resistance and B value.
3、Double packaging technics, Good quality of insulation and package, High capability of colliding and bending, High stablity.
APPLICATION
1、Air conditioners, Refrigerators, Freezers.
2、Water heaters, Potable water heaters, Air warmers, Washers, Disinfection cases.
3、Washing machines, Driers, Thermotanks.

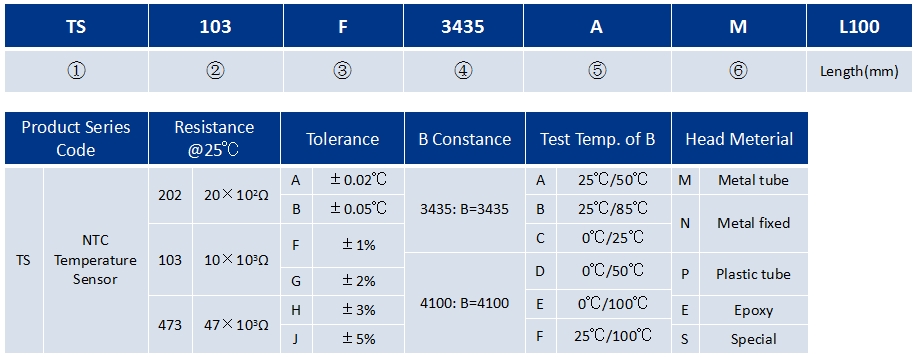

Part Number Identification
Electronic Parameter Specification
|
Part No.
|
R25℃
(KΩ)
|
B(K)
25/50℃
|
Rated Power @25℃（mW）
|
Dissipation Factor(δ)
(mW/℃)
|
Thermal Time
Constant (S)
|
|
TS502□3274A
|
5.0
|
3274 ±1%
|
10-20
|
2-4
|
5-20
|
|
TS502□3435B
|
5.0
|
3435 ±1%
|
|
TS502□3470A
|
5.0
|
3470 ±1%
|
|
TS502□3950A
|
5.0
|
3950 ±1%
|
|
TS103□3274A
|
10.0
|
3274 ±1%
|
|
TS103□3435B
|
10.0
|
3435 ±1%
|
|
TS103□3470A
|
10.0
|
3470 ±1%
|
|
TS103□3950A
|
10.0
|
3950 ±1%
|
|
TS103□4100A
|
10.0
|
4100 ±1%
|
|
TS153□3950A
|
15.0
|
3950 ±1%
|
|
TS153□4100A
|
15.0
|
4100 ±1%
|
|
TS203□3950A
|
20.0
|
3950 ±1%
|
|
TS203□4100A
|
20.0
|
4100 ±1%
|
|
TS223□4200A
|
22.0
|
4200 ±1%
|
|
TS403□3928A
|
40.27
|
3928 ±1%
|
|
TS503□3950A
|
50.0
|
3950 ±1%
|
|
TS503□4100A
|
50.0
|
4100 ±1%
|
|
TS104□3950A
|
100
|
3950 ±1%
|
|
TS104□4100A
|
100
|
4100 ±1%
|
|
TS104□4400A
|
100
|
4400 ±1%
|
◆Special part number could be custom designed.
